Unreal Engine 5.4 [1]: Introduction
Unreal Engine 5.4?
Installing Unreal Engine 5.4
0. Hardware / Software Spec
MacBook Pro M3 Pro
Mem 18 GB / Macintosh HD
MacOS Sonoma 14.4.1
Xcode Version 15.4
Command Line Tools for Xcode 15.3
EpicInstaller 15.17.1
Epic Games Launcher 16.7.1
Unreal Engine 5.4
1. Install Xcode
Android Studio of JetBrains or Visual Studio for Mac of MS also require Xcode to be installed to finally compile software for iOS/macOS, and Game Maker, Unity, Unreal Engine, and React Native also require Xcode to compile into the iOS environment.

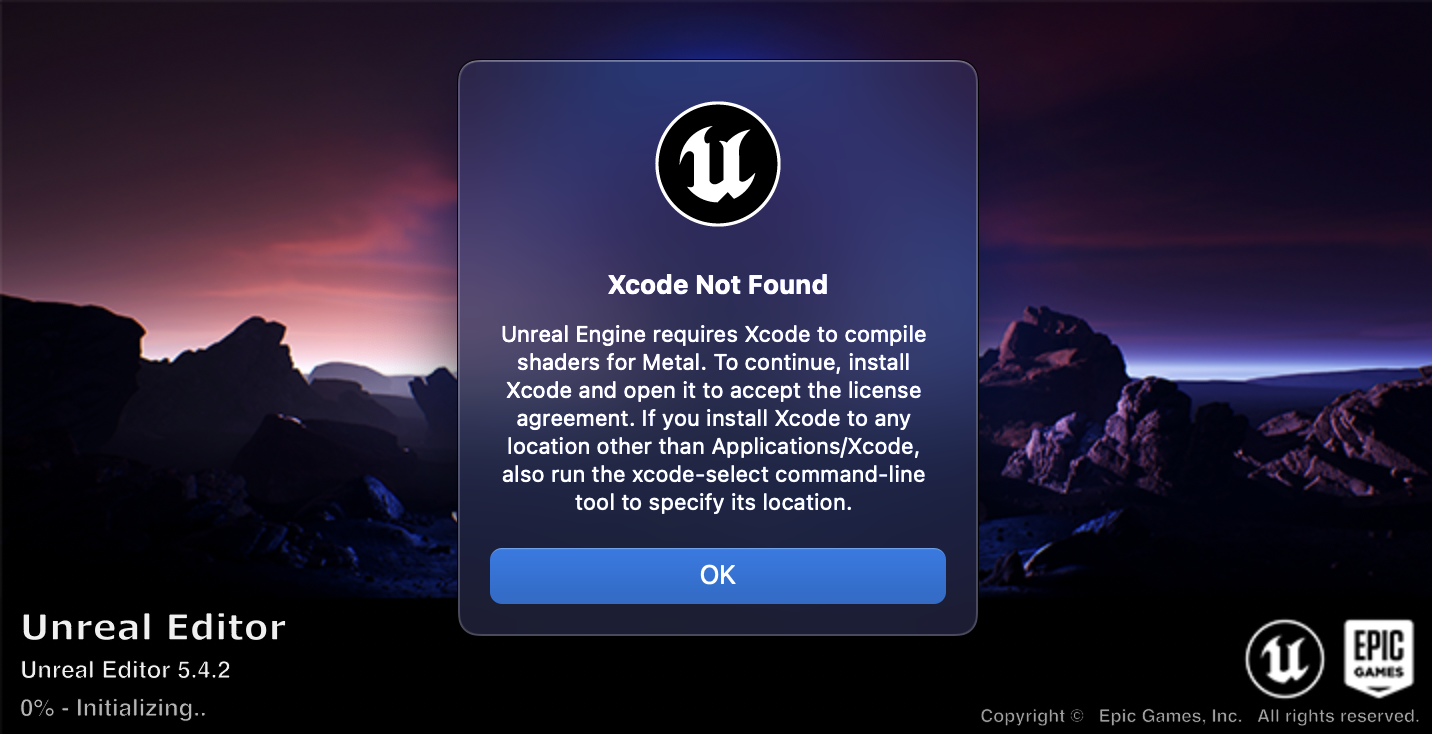

If there is no Xcode on MacOS, the following error message will appear even if you installed UE.
As said above, we need to download and install Xcode for Unreal Engine. The Xcode application may need to be moved to your application folder on your Mac for UE to begin loading.
There are two ways to do this.
1-1) Download via the App Store for the latest version

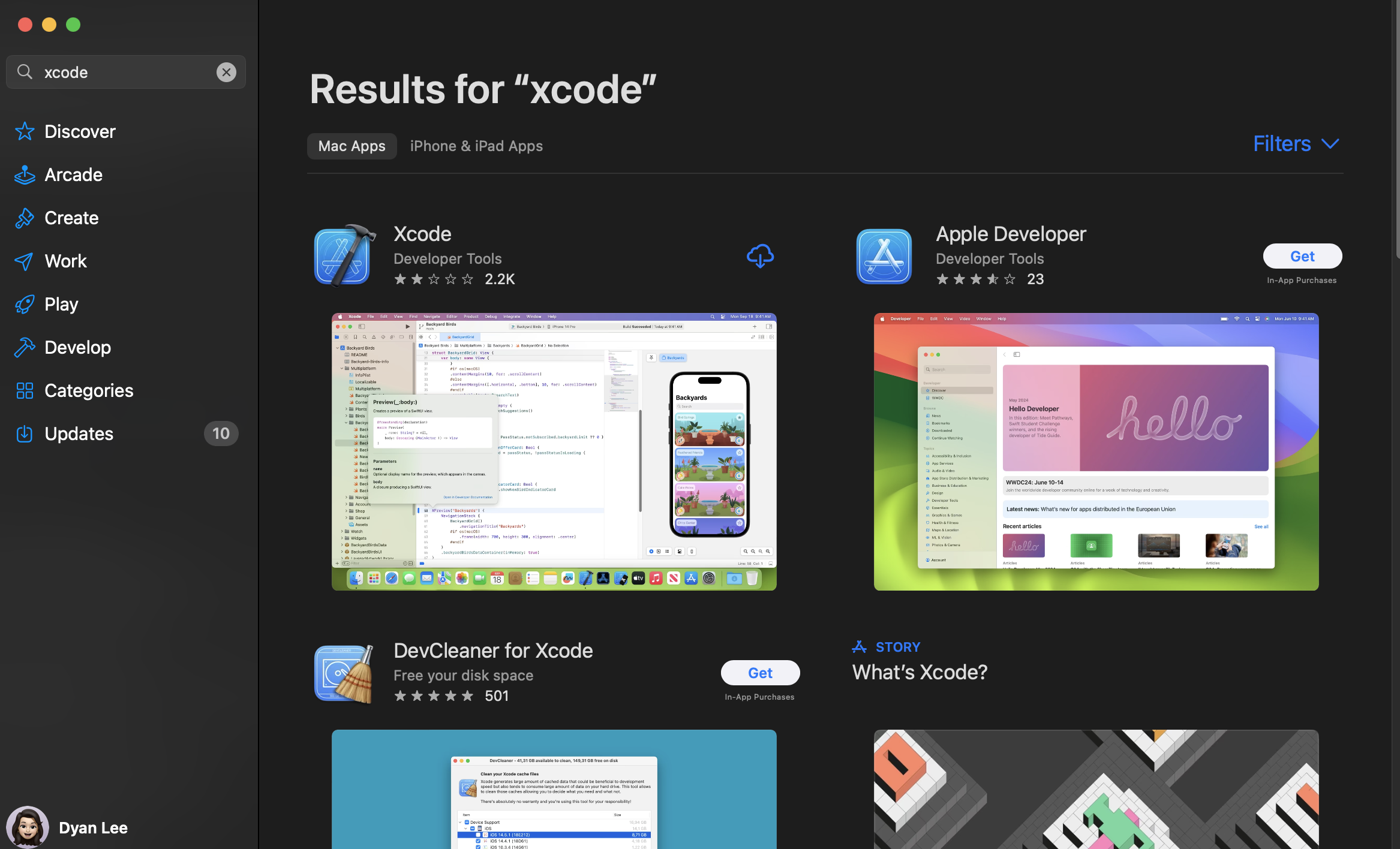

Open the App Store on your mac > Sign in > Search for ‘Xcode’ > Click ‘install or update’
Download Xcode via App Store 🍎
* If you can’t download it from the App store then find the download on Apples website.
1-2) Download via the Developer site for a specific version (recommended)
‘Downloads’ of Apple Developer Website > Sign in > ‘More’ Section > Type in the version and download Xcode _._.xip file > Extract .xip file > Drag application to the Applications folder (could be automatic)
Xcode is a large application (Xcode 15.4 is 3.19 GB), so this will take awhile depending on your internet connection.

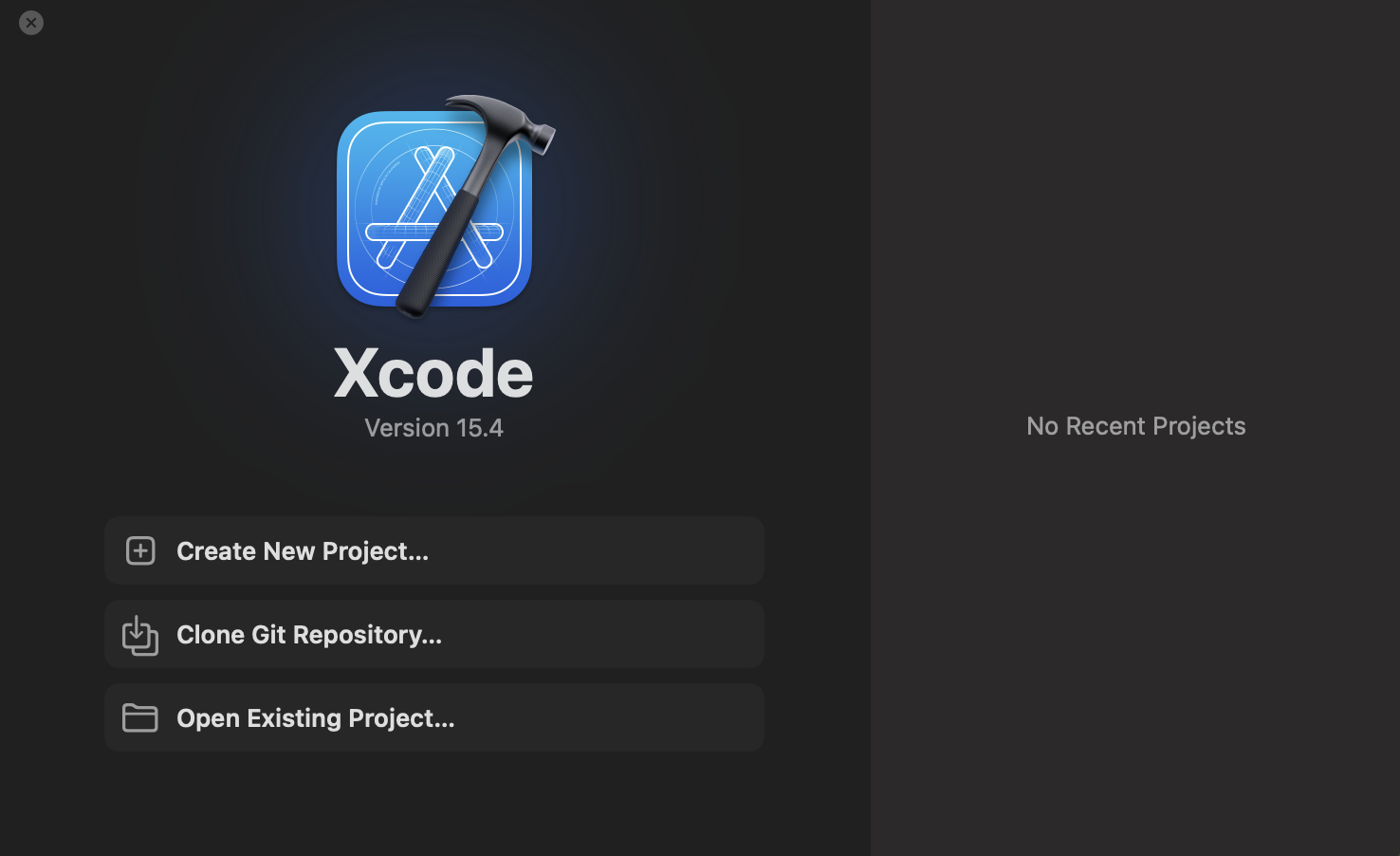

Xcode Installed! 😆
2) Install the Command Line Tool (CLT)
‘Downloads’ of Apple Developer Website > Sign in > ‘More’ Section > Type in ‘Command Line Tool’ and download Command Line Tools for Xcode __._.dmg file > Extract and install
It’s a large file (around 4GB), so please make sure your device has enough storage and check if the internet connection is stable.

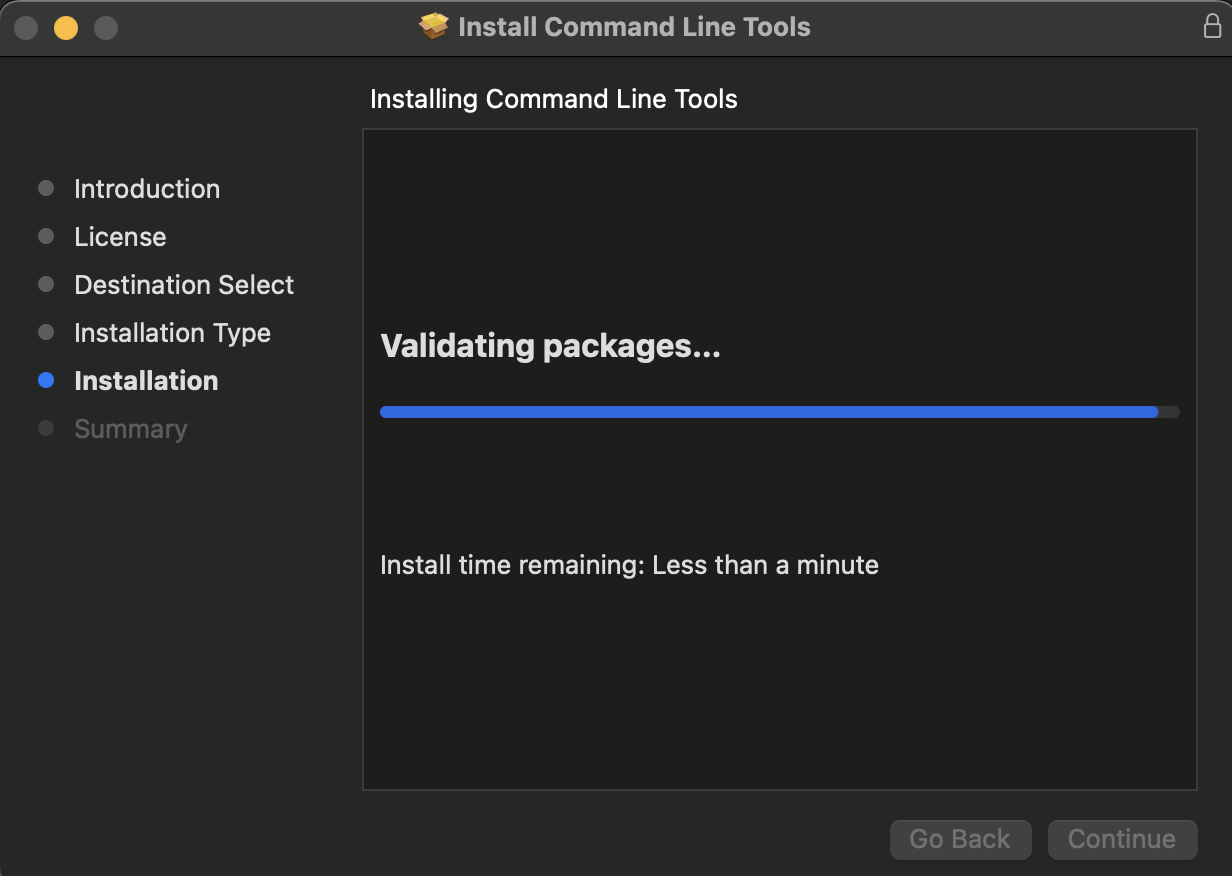

Proceed with the installation carefully by following the instructions! 🫰
Almost done! 👏
If you’ve never installed Xcode before, instead of visiting the developer website, you can update CLT using the terminal with xcode-select --install command.
However, if you have an existing Xcode installed, you may see the following error:
1
xcode-select: error: Command line tools are already installed. Use “Software Update” to install updates.
This means you gotta to go to the developer’s website to install it.
3) Delete downloaded files
Let’s delete the .xip and .dmg files just downloaded since we probably will not going to need it anymore! 👋
2. Install Unreal Engine
Unreal Engine Download Website
1) Instructions for Epic Games Launcher
- Steps for installing Unreal Engine
- Steps for installing Unreal Engine from the source code
- Installing Unreal Engine Video
If you install the Unreal Engine following the instructions above, you will be able to open the Epic Games Launcher.
2) Installation for Unreal Engine
Go to ‘Unreal Engine’ on left sidebar > ‘Library’ on the tab above > ‘ENGINE VERSIONS’ > Install the ‘Unreal Engine’

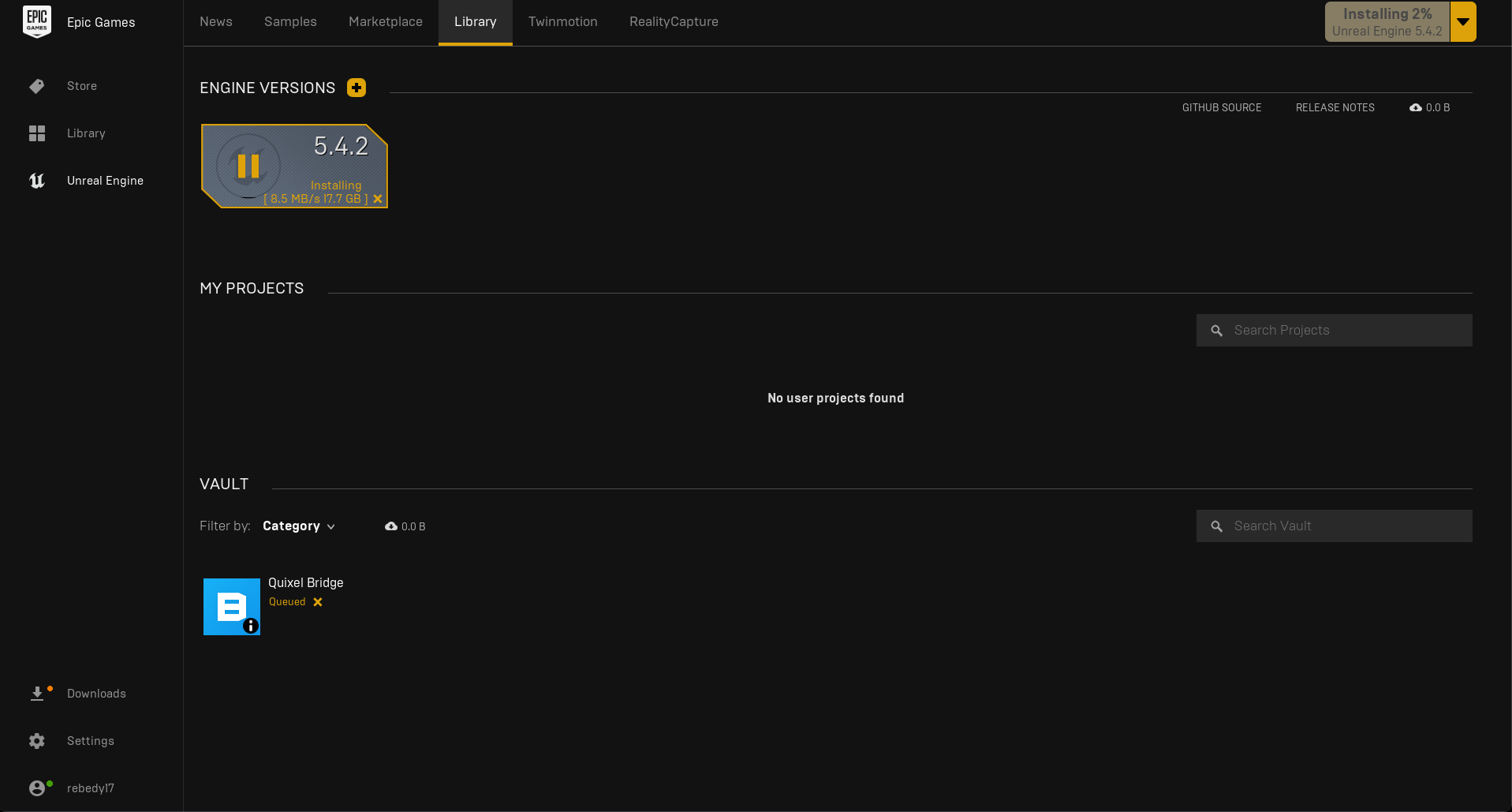

Downloading Unreal Engine via Epic Games Launcher 🎮
3) “Xcode Not Found” Error Again…
I thought I did all that it requires… 🤔
The Xcode Not Found error message says to run the xcode-select command-line-tool to specify the location but it didn’t work..
So, I thought, I need to run the command below to set the location of the Xcode application since I didn’t set it before at all.
1
sudo xcode-select -s /Applications/Xcode.app
👸 Keep the Xcode open!!!

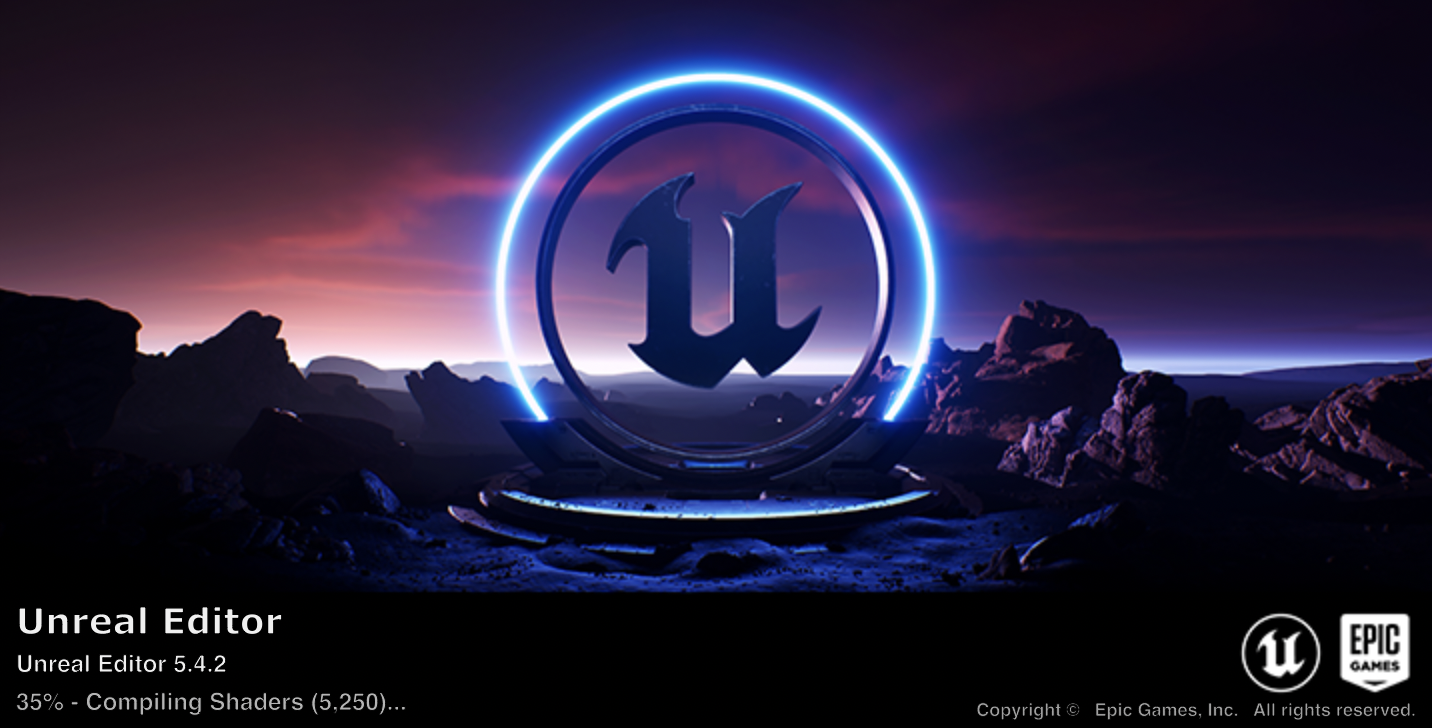

And then…. The Unreal Editor worked well! The message left below that was saying ‘Initializing…’ started to count the percentage.
It works! 😚
4) Done!

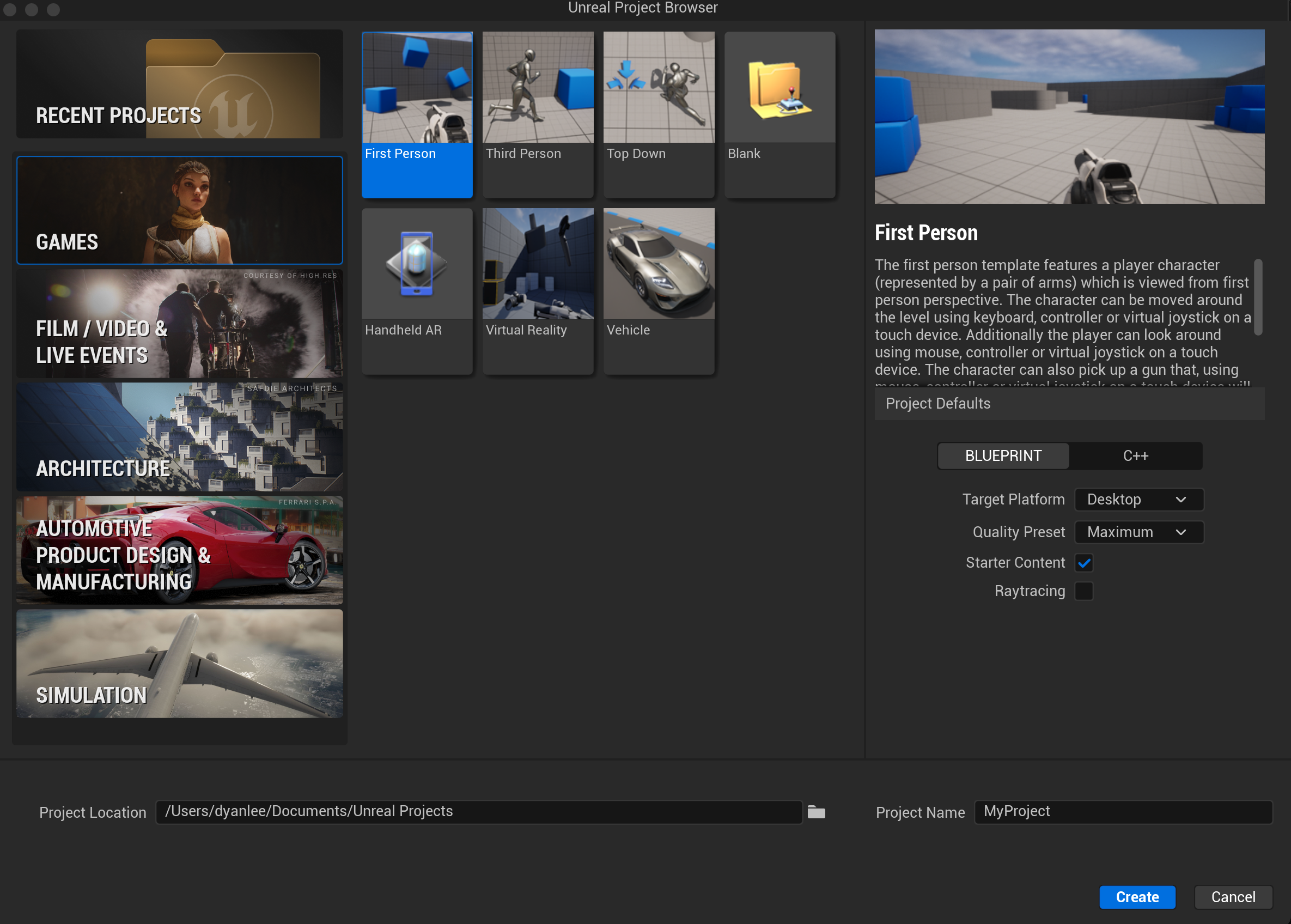

This is the first scene that you can see on the Unreal Project Browser.
Finally~~ 😉
What do you want to do with UE? 🤩
As finalizing my introduction to the Unreal Engine, I am considering creating a Project for Virtual Production in the FILM / VIDEO & LIVE EVENTS section.
The Virtual Production project template contains functionality for Virtual Reality Scouting, Virtual Camera, SDI(Serial Digital Interface) Video, Live Compositing and nDisplay.

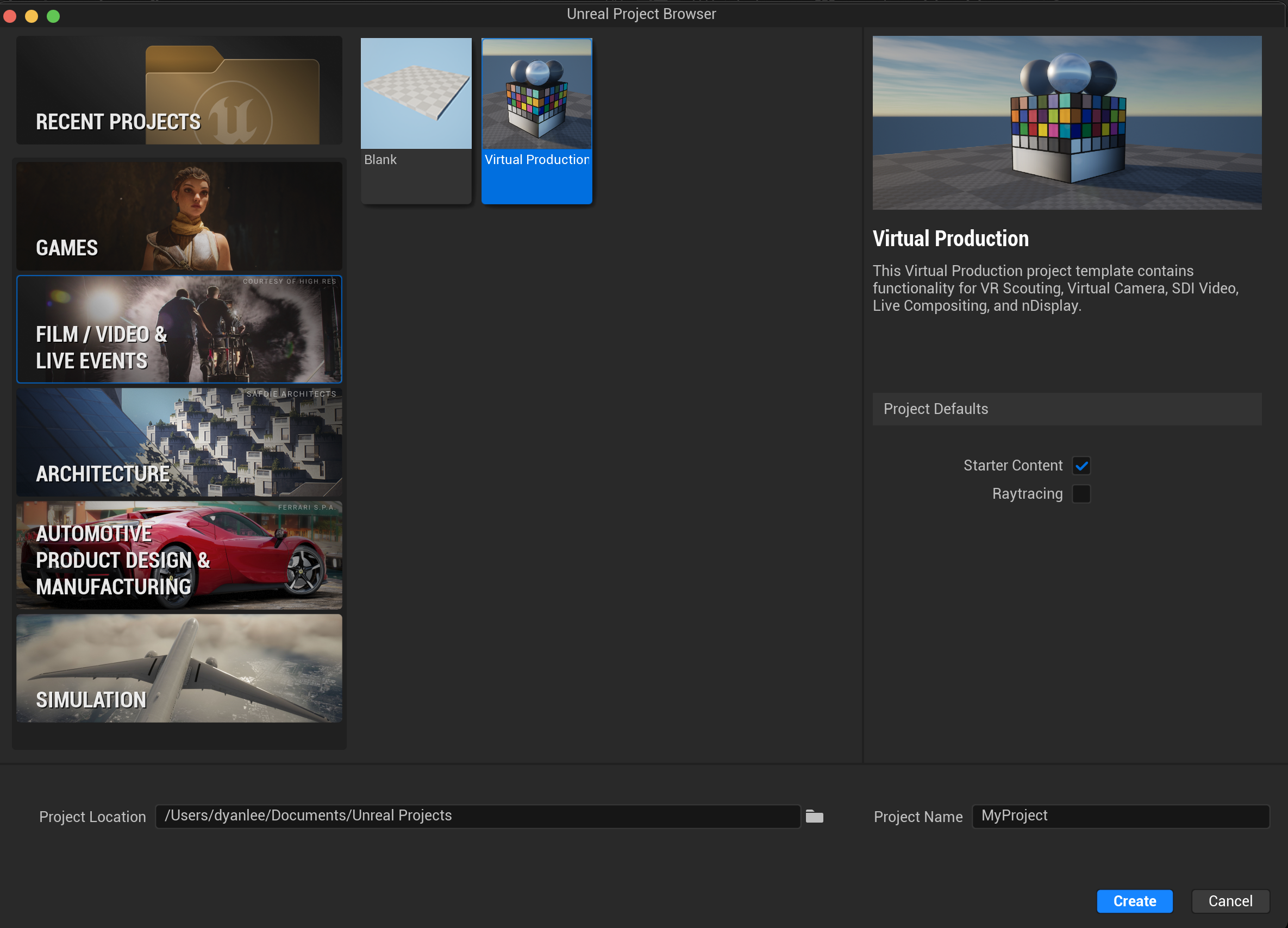

A Project for Virtual Production in the FILM / VIDEO & LIVE EVENTS section.
Let’s continue in the next posting! 💝
